LTC-1435

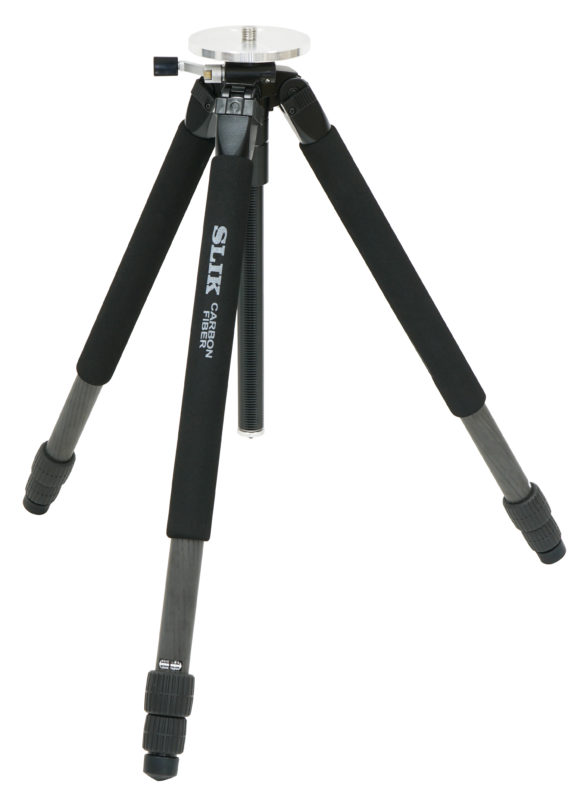

The SLIK Laser Scanner Tripod LT-1435 is designed with both durability and lightweight features in mind, making it ideal for environments that require frequent movement.
It offers a wide range of height adjustments, from 485mm to 1435mm which can be adjusted very smoothly, thanks to its efficient Rack and Pinion mechanism.
The lever lock type is also implemented on the design to allow quick and easy leg height adjustments.
-
Rack and Pinion Mechanism
The Rack and Pinion system enables precise positioning adjustments for marking.
-
Ground Laser Marking
LTC-1435 center column is designed to enable ground mark point for laser scanner, allowing a more accurate measurement.
-
Stable and Portable
The aluminum legs are engineered to provide both durability and lightness to enhance performance in environments that requires frequent movement.
-
Leg Brace Mechanism for increased stability
This feature improves stability during setup and it also minimizes the tripod's tendency to twist under heavy loads.
-
2-way leg tip that firmly grips the ground
Equipped with adjustable type spikes as a standard feature, which can be very convenient when working on unstable surfaces.
| Folded Length: | 495 mm |
| Maximum Operating Height: | 1,435 mm |
| Minimum Operating Height: | 485 mm |
| Maximum Center Column Ext.: | 310 mm |
| Weight: | 1,250 g |
| Leg Lock Type: | Lever-type Lock |
| Leg Tip: | Rubber Feet |
| How To Mount Equipment: | W5/8 |
| Number of Leg Sections: | 3 |
| Shape of Leg Pipe/Tube: |  |
| Diameter of the first upper leg: | 23 mm |
| Type of Center Column Elevation: | Rack & Pinion type |
